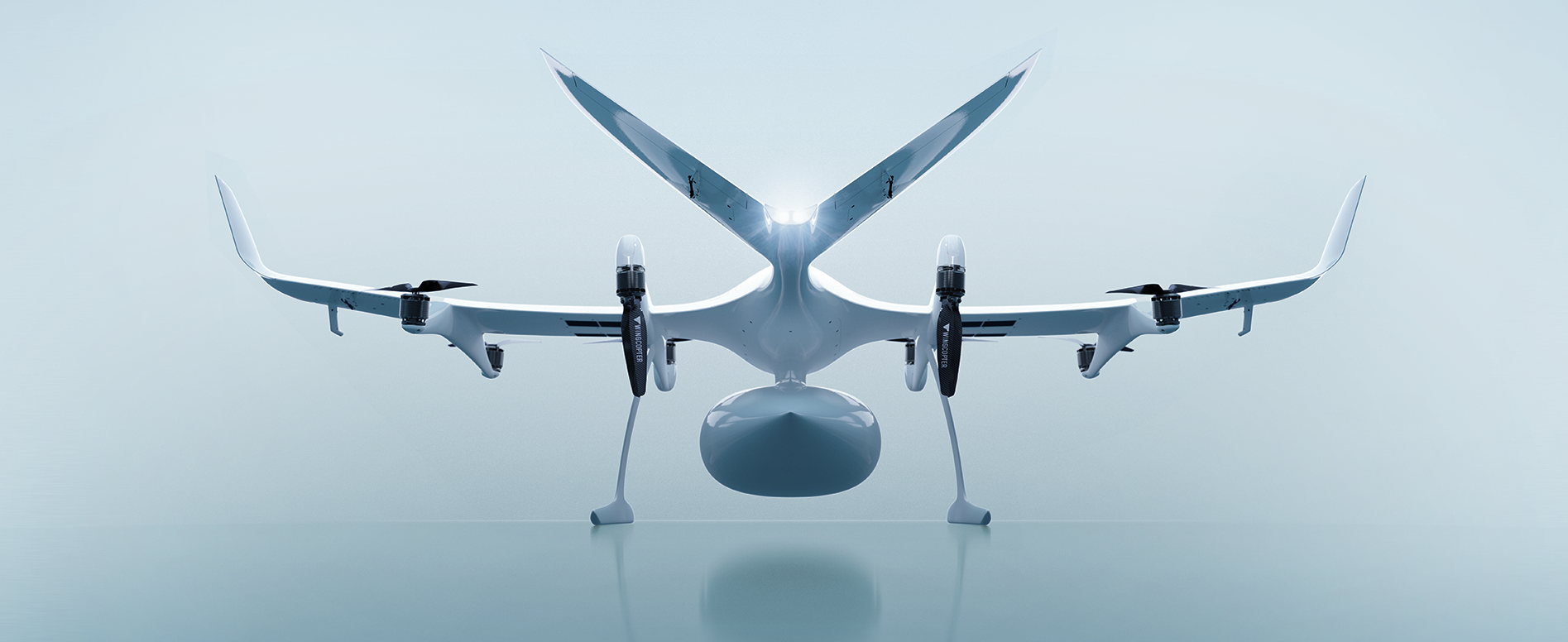

Wingcopter 198
The Wingcopter 198 introduces an era of new opportunities for delivery drones, pushing flight and delivery capabilities beyond conventional limits.
HIGH PERFORMANCE
The Wingcopter 198 delivers where it is needed and when it is needed. Building on the patented tilt-rotor technology, the Wingcopter 198 surpasses previous performance & durability standards making it an optimal all-weather delivery drone that can withstand strong winds and rain.
THE DELIVERY DRONE
The Wingcopter 198 delivers heavy payloads over long ranges, pushing the envelope of what is possible.
Payload: Up to 6 kg total
Range: Up to 110 km
Wind resistance: 15 m/s average, 20 m/s gusts
Default cruise speed: 100 km/h
OPTIMIZED FOR
CARGO FLIGHTS
The unique aerodynamic design enables an efficient forward flight with a wide center of gravity for flexible payload attachments, making it an optimal drone for cargo delivery.
ENHANCED FLIGHT CHARACTERISTICS
The winglets extend the surface of the wing making it more efficient in fixed-wing mode without compromising the compact size of the drone.
SAFETY & RELIABILITY
Reliable and safe flight operations are fundamental requirements for viable and scalable drone delivery solutions beyond visual line of sight. Thanks to the redundant system architecture, the Wingcopter 198 provides an extremely high degree of reliability and safety.
REDUNDANT FLIGHT CONTROL SYSTEM
The Wingcopter 198 is equipped with dual airspeed sensors, dual heading and positioning systems, and dual flight controllers.
This redundant system architecture ensures uninterrupted control over the aircraft.
FAIL-SAFE
POWER TRAIN
ARCHITECTURE
The Wingcopter 198 utilizes eight motors, eight ESCs, and two batteries to assure operational safety, even if there is a failure in the power train.
ADVANCED
RISK DETECTION
The advanced collision avoidance system of the Wingcopter 198 including ADS-B in, FLARM, and Remote ID, assures the highest safety standards.
In addition, multiple cameras with the optical awareness system detect obstacles, while an integrated AI will assess risks in real-time, and if necessary, initiates evasive flight maneuvers.
COST EFFECTIVENESS
The Wingcopter 198 is specifically designed to address the cost of delivery with innovative features, including a triple-drop system, unique control station software for efficient mission planning, and advanced maintenance technology.
THE
TRIPLE DROP
The Wingcopter 198 can deliver up to 3 separate packages to multiple locations with a total weight of 5 kg during one single flight.
For each delivery stop the Wingcopter 198 transitions from forward flight mode to hover mode and lowers the package in a matter of seconds.
The entire delivery process is completely automated, reducing delivery costs and maximizing route efficiency.
THE POWER OF TEN
The control station software enables a single pilot in command to fly & monitor up to 10 drones simultaneously from remote locations.
In addition, its intuitive features make flight and mission planning as simple and straight forward as possible.
ADVANCED MAINTENANCE TECHNOLOGY
Performance data from components is automatically uploaded to a secure database for efficient maintenance management.
This advanced maintenance technology avoids unplanned downtimes, improves fleet reliability, and lowers maintenance costs.
EASE & EFFICIENCY OF OPERATIONS
In logistics or transportation, the efficiency of operations is key. The Wingcopter 198 is the drone delivery solution that supports logistics providers by making delivery operations as easy and as efficient as possible.
HIGH LEVEL OF
AUTONOMY
The Wingcopter 198 is designed for level 4 autonomous flying & deliveries thereby reducing the need for human interaction.
The high level of autonomy enables quick setup and training as well as efficient and stable operations, shifting the focus from drone to logistics operations.
QUICK & EASY
MISSION PLANNING
The control station software is a system for flight and mission planning, aircraft control, and operational monitoring.
It is specifically designed to enhance the workflow of the pilot in command and the logistics provider.
An integrated elevation and airspace database make mission planning quicker, safer and more efficient.
IMPROVED
CAPACITY
MANAGEMENT
One pilot in command can control and monitor up to 10 drones simultaneously. In case of overload, underutilization, or during a shift change, the special hand-over functionality of the control station allows to hand-over delivery missions in-flight and in real-time.
The handover functionality supports logistics providers to optimize the utilization of the delivery fleet.
MAXIMIZE TIME IN THE AIR
The smart batteries that power the Wingcopter 198 are designed to maximize the time in the air and to ensure long battery life.
The smart batteries are optimized for quick swaps and easy ground handling.
SEAMLESS
INTEGRATION
The Wingcopter Cloud allows for mission planning to be independent of the operation. APIs enable a seamless integration of fleet information into customer software solutions.
Alternatively, customers benefit from the Wingcopter Cloud, its APIs, and the control station as a turnkey solution to quickly start operations.
Wingcopter 198 Specifications
External Dimensions
198 cm wingspan
152 cm from front to tail
Range
75 km with 5 kg
85 km with 3 kg
95 km with 1 kg
110 km without payload
Speed
144 km/h in maximum cruise speed
100 km/h in default cruise speed
Wind Resistance
15 m/s average, 20 m/s gusts
Altitude
5000 m ceiling
Payload
Up to 6 kg total payload, max. 5 kg with triple drop
Redundant Systems
Propulsion
Avionics
Flight Control
Telemetry
Cellular 3G/4G/5G
Satellite IRIDIUM
Awareness
ADS-B in, FLARM, Remote ID
Optical Awareness System
Ground Awareness System
Disclaimer
The respective current products offered by Wingcopter are defined in the latest W198 specification sheet, as made available by Wingcopter in each case. Only such information and technical data is legally binding which Wingcopter is explicitly assuring. Reference is made to the then applicable GTC. Please consult for the currently available product specification.
